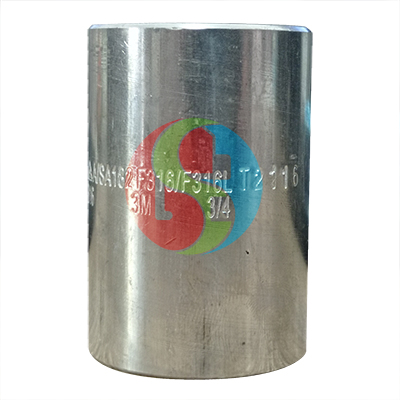

FORGED FITTING STAINLESS STEEL

Full Coupling Threaded Stainless Steel
Full Coupling Threaded Stainless Steel
Full Coupling Threaded Stainless Steel

FULL COUPLING THREADED STAINLESS STEEL

FORGED THREADED FULL COUPLING STAINLESS STEEL, THREADED FULL COUPLING PIPE FITTING, FULL COUPLING THREADED SS304 SS316 STAINLESS STEEL CLASS 3000 LBS, 6000 LBS, 9000 LBS
Kode
ITM00390
Merk
TAIWAN

Deskripsi Produk

JUAL FORGED THREADED FULL COUPLING STAINLESS STEEL, THREADED FULL COUPLING PIPE FITTING, FULL COUPLING THREADED SS304 SS316 STAINLESS STEEL CLASS 3000 LBS, 6000 LBS, 9000 LBS

STANDARD :  ASME B16.11 , MSS SP-79, MSS SP-95, 83, 95, 97, BS3799
                       DIN 2065, DIN 2615, DIN 2616, DIN 2617, DIN 28011
                       EN 10253-1, EN 10253-2
SIZE : 1/8 INCH - 4 INCH
PRESSURE CLASS : 3000 LBS, 6000 LBS, 9000 LBS
CONNECTION : THREADED, NPT, BSP, BSPT
GRADE : ASTM /  ASME A/SA182-F304 / L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
MANUFACTURED : TAIWAN, EROPA, AMERIKA, JEPANG, KOREA
